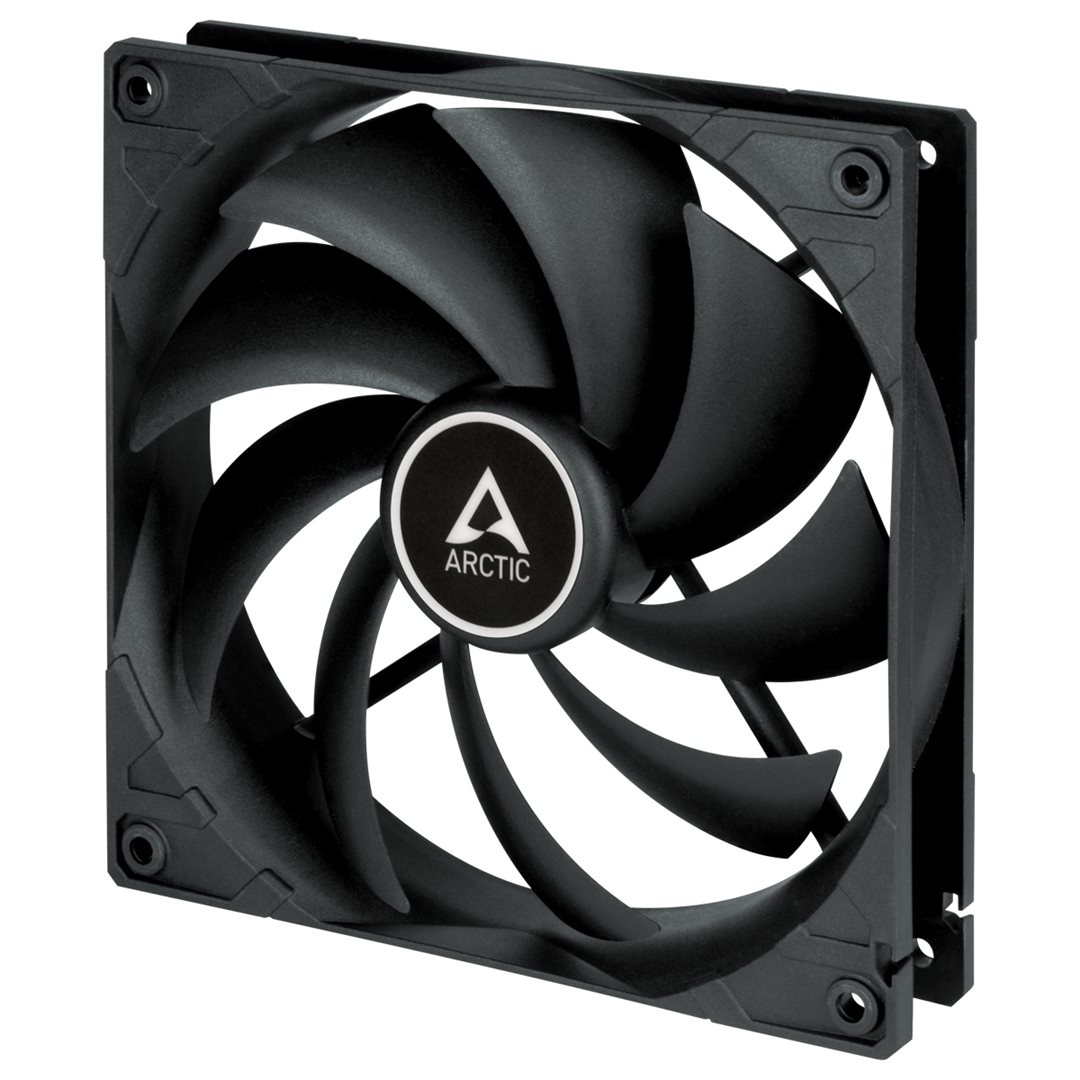

ARCTIC F14 Case Fan - 140mm case fan low noise

F14
140 mm Standard Case Fan

LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case

General data
Performance
Fan Speed: 1350 rpm
Airflow: 74 CFM/ 126 m3/h
Static Pressure: 1.6 mm H2O
Noise Level: 0.5 Sone
Operating Ambient Temperature: 0 - 40 °C

Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.20 A / 12 V
Cable Lenght: 400
